Lub chav dej vitreous Tuam Tshoj pib ua kua slurry thiab xaus li 45kg chav dej fixture uas tuav 400kg ntawm static load. Qhov kev puas tsuaj no suav nrog 14 theem ntawm kev tsim khoom lag luam uas ua kom muaj qhov raug thiab ua haujlwm ntev.
1. Cov khoom sib xyaw & Slip Preparation
Vitreous Tuam Tshoj yog lub cev triaxial xav tau cov ntxhia sib npaug rau B2B cov qauv zoo.
| Cov ntxhia | Loj | Muaj nuj nqi |
|---|---|---|
| Pob av nplaum | 25-30% | Plasticity thiab ntsuab zog |
| Kaolin | 20-25% | Dawb thiab refractory txhawb |
| Feldspar | 25-30% | Flux rau iav theem tsim |
| Silica | 20-25% | Tus qauv tsim |

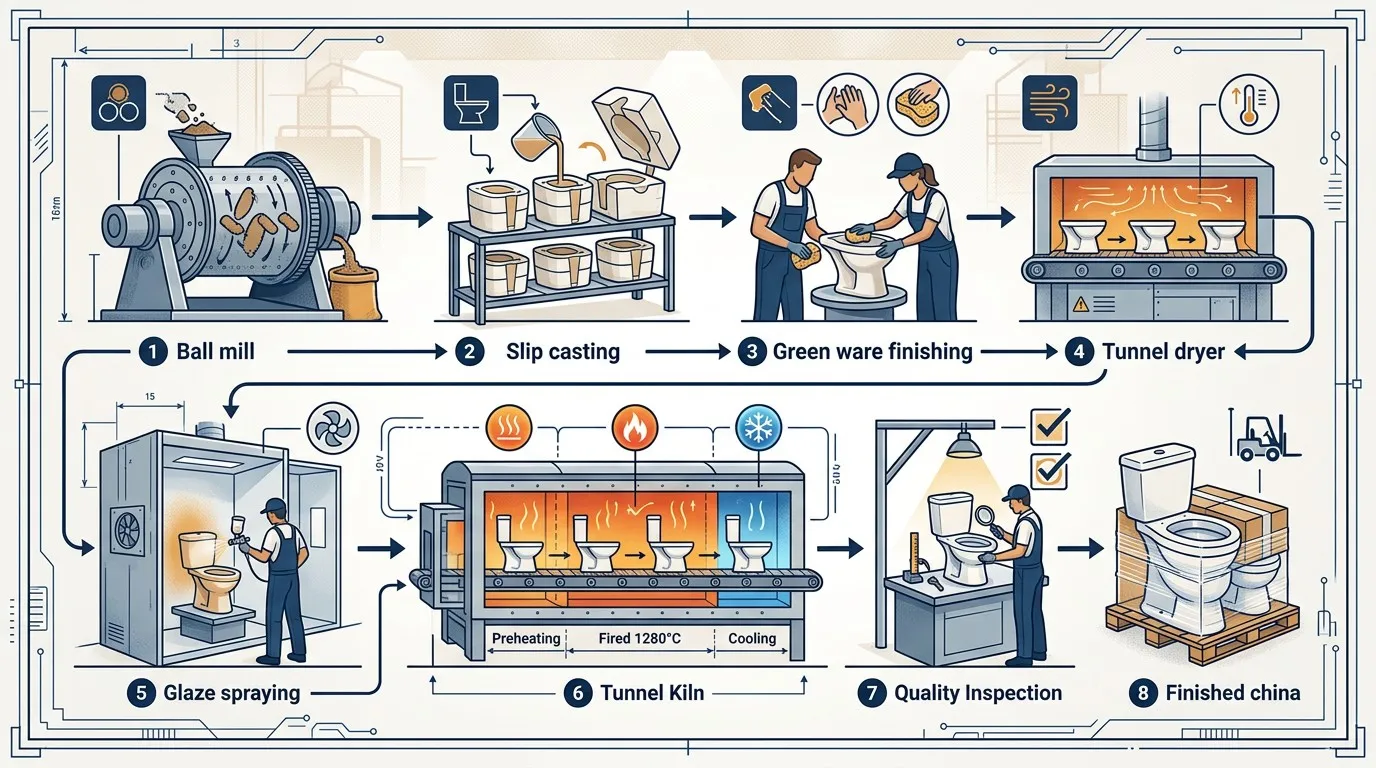

2. Hluav taws xob & cua sov cheeb tsam
Industrial tunnel kilns tswj qhov kub thiab txias profile muab faib ua peb thaj chaw tseem ceeb:
- Preheating (20-950 degree):Organic burnout thiab ya raws tshem tawm. Critical quartz inversion ntawm 573 degree.
- Soaking (1280 degree):Peak vitrification qhov twg lub cev shrinks 8-12% thiab glaze matures.
- Cua txias (1280-80 degree):Kev qeeb qeeb -kom tiv thaiv thermal shocks.
3. Tshaj tawm -Fire Quality Benchmarks
Txhua daim yuav tsum ua raws li cov txheej txheem nruj ua ntej xa tawm.
| Specification | Txuj | Pass Criteria |
|---|---|---|
| Kev nqus dej | ISO 10545-3 | Tsawg dua lossis sib npaug li 0.5% |
| Txoj kab uas hla | ASME A112.19.2 | Ntau dua lossis sib npaug li 51mm |
| Thermal Shock | Autoclave xeem | Tsis muaj crazing tom qab 1 lub voj voog |
| Static Load | Hom kev xeem | 400kg / 30 min |
Cov lus nug nquag
Cov ntxhia dab tsi muab cov xim dawb rau lub cev ceramic?
Kaolin (suav teb av nplaum) feem ntau yog lub luag hauj lwm rau lub whiteness ntawm lub vitreous Tuam Tshoj lub cev thiab muab lub refractory skeleton thaum lub sij hawm siab - kub firing.
Yuav ua li cas plam casting ua haujlwm rau cov chav dej?
Slip casting yuav tsum tau siv cov av nplaum rau hauv ib qho porous plaster pwm. Lub plaster absorbs dej, tawm hauv ib lub phab ntsa ntawm av nplaum. Tom qab ~ 60 feeb, cov hlais dhau yog drained, tawm hauv lub qhov quav tso quav lub cev.
🛡️ Kev Ruaj Ntseg Siab -Quality Sanitary Ware Production
Nrhiav ib lub chaw tsim khoom nrog nruj 14-theem txheej txheem tswj? Hu rau Yingjie Da Dej rau cov txheej txheem kev teev npe thiab lub Hoobkas tshawb xyuas lub sijhawm.
👉 Thov Qhuav Specifications & Commercial Quote
